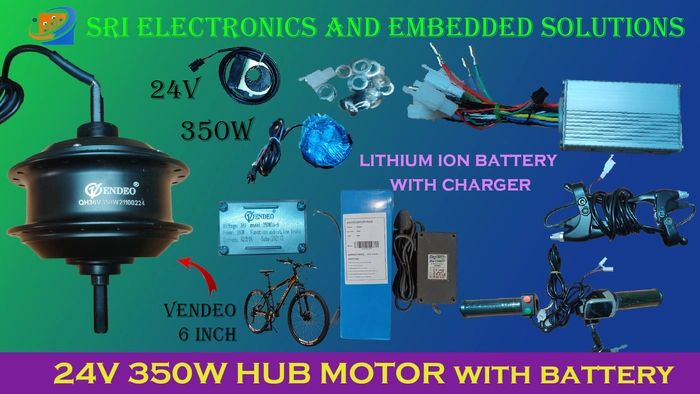

24V 350W E-BICYCLE HUB MOTOR KIT -VENDEO+ Lithium Ion Battery (Softpack) + Charger- E-Bicycle Hub Motor Full set

24V 350W E-BICYCLE HUB MOTOR KIT CONVERSION KIT -VENDEO ORIGINAL - ELECTRIC BICYCLE + Lithium Ion Battery (Softpack) + Charger- E-Bicycle Hub Motor Full set

Product description

I. 24V 350W E-BICYCLE HUB MOTOR KIT CONVERSION KIT- VENDEO ORIGINAL MAKE

PEAK POWER 550WATT
RATED TORQUE APPROX 11 N.M.
LOADING CAPICITY 2 PERSON ( 150 KG. )

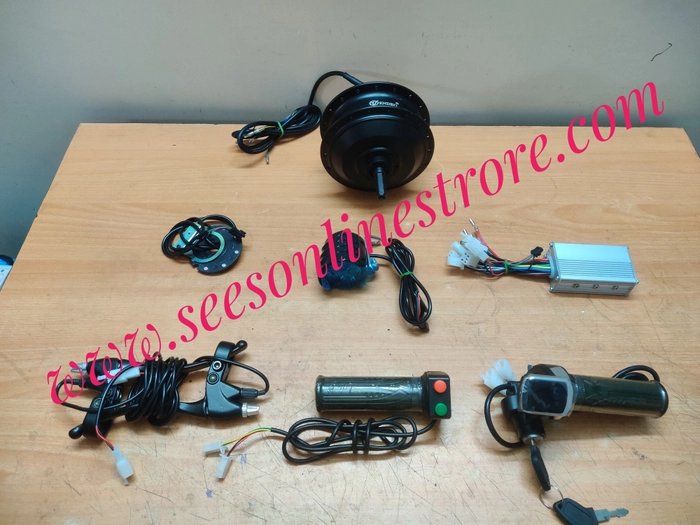

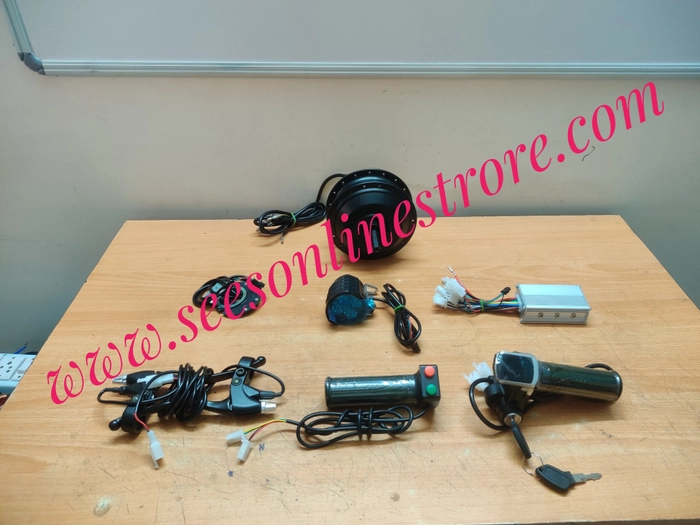

TOTAL 9 ITEMS INCLUDING

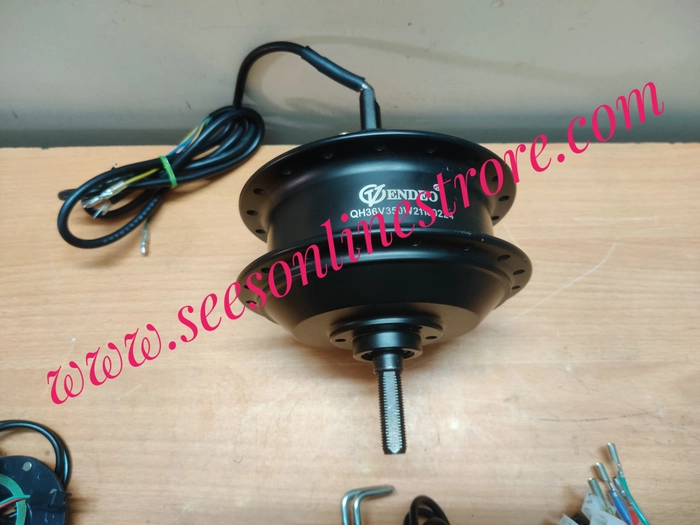

1- MOTOR ( APPROX 3050 GRAMS WEIGHT)
• HIGH EFFICIENCY
• MOTOR 24V 350W ( PURE COPPER WINDING )
• BRAND :VENDEO ORIGINAL Brand
• RATED RPM 300 AT 43 VOLT
• MOTOR IS WATERPROOF

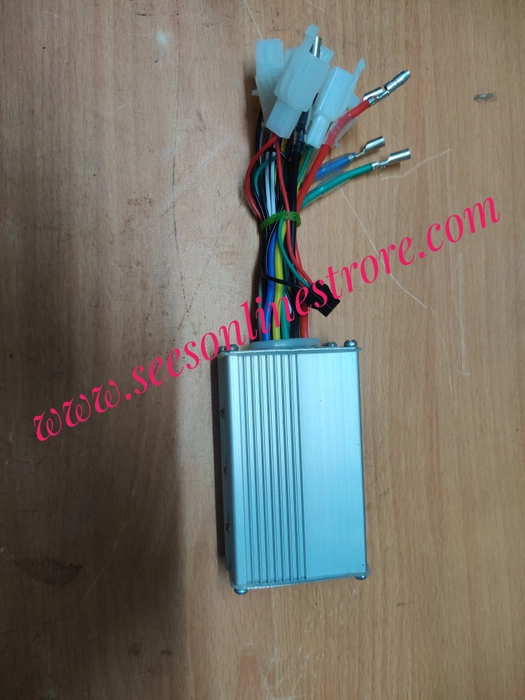

2- INTELLIGENT HIGH QUALITY CONTROLLER
• CONTROLLER 24V 350W PEAK POWER 550 WATT
• CONTROLLER IS WATER PROOF

3- THROTTLE WITH ON/OFF SWITCH AND HORN SWITCH

4. HEAD LIGHT CUM HORN

5- PEDAL ASSIST SENSOR MAGNET ( PEDAL ASSIST SENSOR INCREASE MILEAGE )

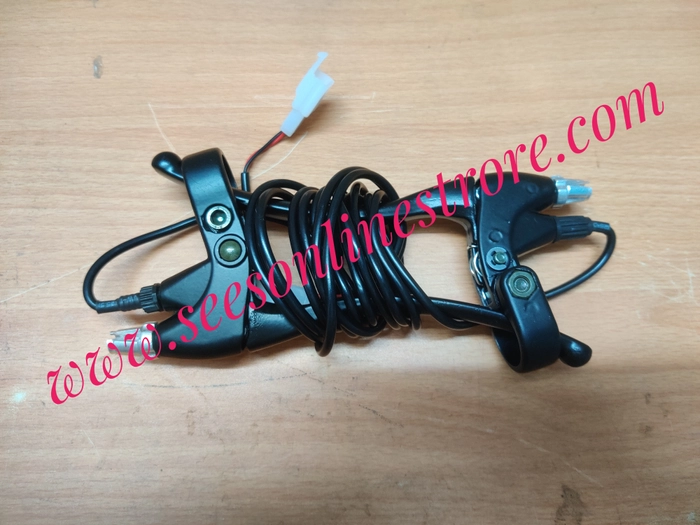

6- BRAKE – 1 SET

7- NUT AND WASHER

You can use this motor in ANY NORMAL BICYCLE

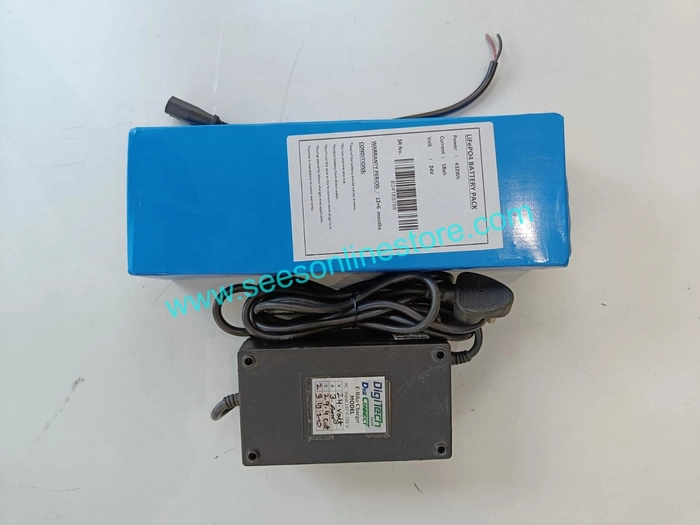

II. Lithium ion batteries For E-Bicycle  - Softpack

Lithium ion batteries For E-Bicycle (36v ) - Softpack

• Very Small in size and weight compared to Ni-Cd, Ni-MH and Lead Acid Batteries
• Full Charge in 40 to 90 minutes depending upon special charger
• Long life with full capacity for upto 1000 charge cycles
• 30X Li-ion 3.7V 2500mAh cells (6S5P)
• Inbuilt charge protection circuit
• Low maintenance
• The battery can be charged to a maximum of 25.2 V on full charge.
• The battery will work within a voltage range of 20 V to 25.2 V.
• The BMS will cut off the battery at approx. 20 V to prevent over-discharging.
• Maximum safe charging current is 7000 mA.
• Recommend charging current is maximum 2500mA for longer life
• One wire each of battery positive(+ terminal) and battery negative(- terminal) will be provided as output of the battery.
• The charging and discharging of battery is to be done through the same wires.
• XT60 end connectors as per image are  provided with the battery for easy connections.
• WARRANTY - 1 YEAR

AVAILABLE AH AND VOLTAGE RANGES :

Discounted prices for limited time offer

24v 7.5ah  - 15-20 KMS (Approx)
24v 10ah  - 20-25 KMS (Approx)
24v 12.5ah  -25-30 KMS (Approx)
24v 15ah   - 30-35 KMS (Approx)

III. Lithium charger For E-Bicycle -24v 2a charger -1 NOS
