48v/60v/72v 1500w Hybrid Conversion kit for Activa-RETROFIT

Product description

48v/60v/72v 1500w Hybrid Conversion kit for Activa-RETROFIT TYPE (PETROL+ELECTRIC) + Lithium phosphate battery LiFePO4 (SOFTPACK) + Lithium charger -c

Product description

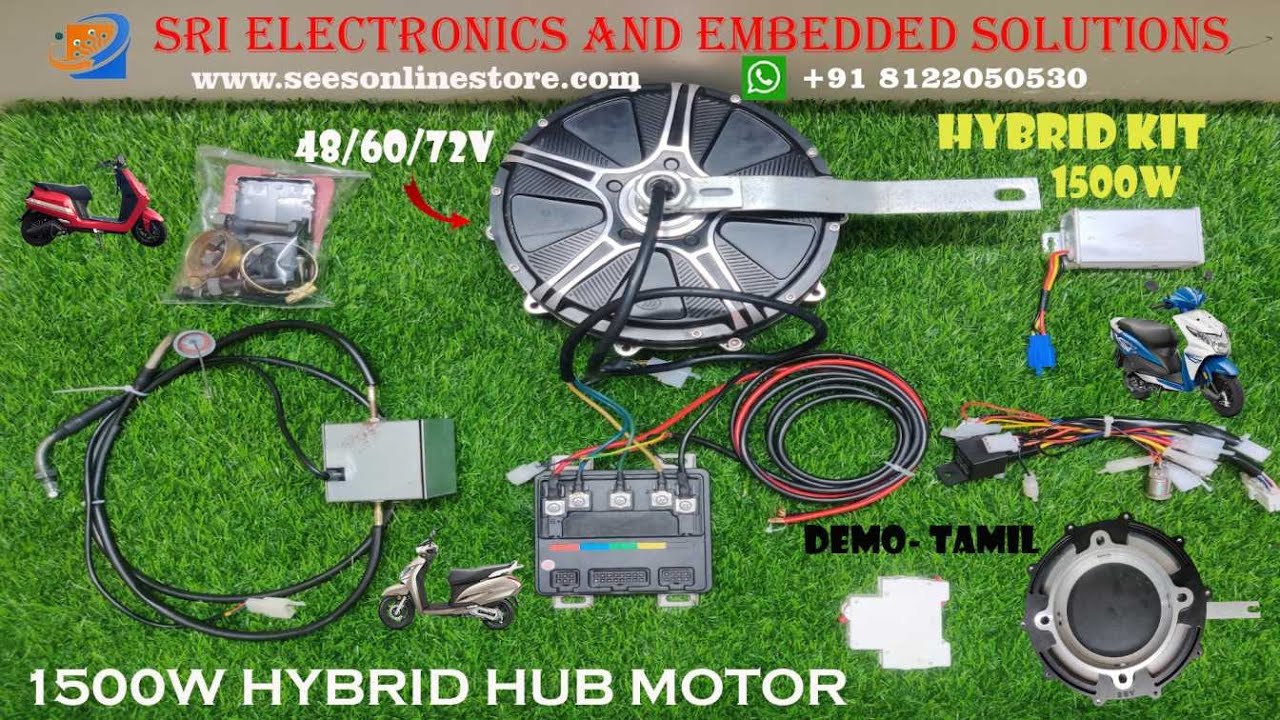

I. 48v/60v/72v 1500w Hybrid Conversion kit for Activa

Motor
● Power (Continuous Power) : 1.5Kw
● Type: DC Brushless Motor
● Wheel Size: 10 inch
● Speed: 40 – 60km/h
● Torque: 30 N.m
● Max. Working Temperature: 80 ℃
● Waterproof Grade: IP54
● Weight : 7 – 8kg
● Efficiency : 85%
● Warranty : 1Year* (Manufacturing defects)


Motor (Drive / Controller)
● Compatible Voltage : 48v / 60v /72v
● Rated current: 35A
● Peak current : 65A
● Max Power : 2.1Kw
● Waterproof Grade: IP64
● Regeneration : Yes
● Type : sine wave
● Warranty : 1Year* (Manufacturing defects)

Other included accessories : Combined throttle, LED switch, Controller wiring, Mounting bolts.

Key Feature –
1. Independent Electric and Petrol Drive
2. No changes required in vehicle for Installation
3. Easy to Install
4. 60 km of top speed in pure Electric Drive
5. Compatible with 48v, 60v & 72v battery pack

II. Lithium phosphate battery LiFePO4 For E-bike  (60 v)- SOFTPACK:

  • Very Small in size and weight compared to Ni-Cd, Ni-MH and Lead Acid Batteries
  • Full Charge in 40 to 90 minutes depending upon special charger
  • Long life with full capacity for upto 1000 charge cycles
  • 30X Li-ion 3.7V 2500mAh cells (6S5P)
  • Inbuilt charge protection circuit
  • Low maintenance
  • The battery can be charged to a maximum of 25.2 V on full charge.
  • The battery will work within a voltage range of 20 V to 25.2 V.
  • The BMS will cut off the battery at approx. 20 V to prevent over-discharging.
  • Maximum safe charging current is 7000 mA.
  • Recommend charging current is maximum 2500mA for longer life
  • One wire each of battery positive(+ terminal) and battery negative(- terminal) will be provided as output of the battery.
  • The charging and discharging of battery is to be done through the same wires.
  • XT60 end connectors as per image are  provided with the battery for easy connections.
  • MAKE : ALTER BRAND
  • WARRANTY - 2 YEARS
  • WEIGHT- 8-14 KGS APPROX (DEPENDS ON AH)

AVAILABLE AH AND VOLTAGE RANGES :

Discounted prices for limited time offer

  • 60v 30ah   - 50-60 kms approx

III. Lithium charger For E-Bike (60V -5 AMPS) -1 nos



48v/60v/72v 1500w Hybrid Conversion kit for Activa-RETROFIT TYPE (PETROL+ELECTRIC) + Lithium phosphate battery LiFePO4 (SOFTPACK) + Lithium charger -E-Bike RETROFIT HUB Motor Full set

E-bike Retrofit Hub Motor Full Set: LFP battery LiFePO4 - 60v 30ah

₹55,549 ₹1,10,000 50% OFF
E-bike Retrofit Hub Motor Full Set

Product description

48v/60v/72v 1500w Hybrid Conversion kit for Activa-RETROFIT TYPE (PETROL+ELECTRIC) + Lithium phosphate battery LiFePO4 (SOFTPACK) + Lithium charger -c

Product description

I. 48v/60v/72v 1500w Hybrid Conversion kit for Activa

Motor
● Power (Continuous Power) : 1.5Kw
● Type: DC Brushless Motor
● Wheel Size: 10 inch
● Speed: 40 – 60km/h
● Torque: 30 N.m
● Max. Working Temperature: 80 ℃
● Waterproof Grade: IP54
● Weight : 7 – 8kg
● Efficiency : 85%
● Warranty : 1Year* (Manufacturing defects)


Motor (Drive / Controller)
● Compatible Voltage : 48v / 60v /72v
● Rated current: 35A
● Peak current : 65A
● Max Power : 2.1Kw
● Waterproof Grade: IP64
● Regeneration : Yes
● Type : sine wave
● Warranty : 1Year* (Manufacturing defects)

Other included accessories : Combined throttle, LED switch, Controller wiring, Mounting bolts.

Key Feature –
1. Independent Electric and Petrol Drive
2. No changes required in vehicle for Installation
3. Easy to Install
4. 60 km of top speed in pure Electric Drive
5. Compatible with 48v, 60v & 72v battery pack

II. Lithium phosphate battery LiFePO4 For E-bike  (60 v)- SOFTPACK:

  • Very Small in size and weight compared to Ni-Cd, Ni-MH and Lead Acid Batteries
  • Full Charge in 40 to 90 minutes depending upon special charger
  • Long life with full capacity for upto 1000 charge cycles
  • 30X Li-ion 3.7V 2500mAh cells (6S5P)
  • Inbuilt charge protection circuit
  • Low maintenance
  • The battery can be charged to a maximum of 25.2 V on full charge.
  • The battery will work within a voltage range of 20 V to 25.2 V.
  • The BMS will cut off the battery at approx. 20 V to prevent over-discharging.
  • Maximum safe charging current is 7000 mA.
  • Recommend charging current is maximum 2500mA for longer life
  • One wire each of battery positive(+ terminal) and battery negative(- terminal) will be provided as output of the battery.
  • The charging and discharging of battery is to be done through the same wires.
  • XT60 end connectors as per image are  provided with the battery for easy connections.
  • MAKE : ALTER BRAND
  • WARRANTY - 2 YEARS
  • WEIGHT- 8-14 KGS APPROX (DEPENDS ON AH)

AVAILABLE AH AND VOLTAGE RANGES :

Discounted prices for limited time offer

  • 60v 30ah   - 50-60 kms approx

III. Lithium charger For E-Bike (60V -5 AMPS) -1 nos
