BOREWELL TO OVERHEAD TANK (SEES-BORE)

Automatic Water Level Controller For Single Phase Submersible (bore well) Pumps Panel Driver (Single phase tothree phase). This is a unique device for submersible Pump Up to 2.5 HP Capacity. Our submersible panel drive is the most suitable device for start/Run capacitors Panel Driven Water Pumps. It increases the life of motor to work for year. Application Like Residential Buildings, apartment’s, Commercial Complexes, Industrial Buildings, Hotels, Hospitals, . . . .Etc.

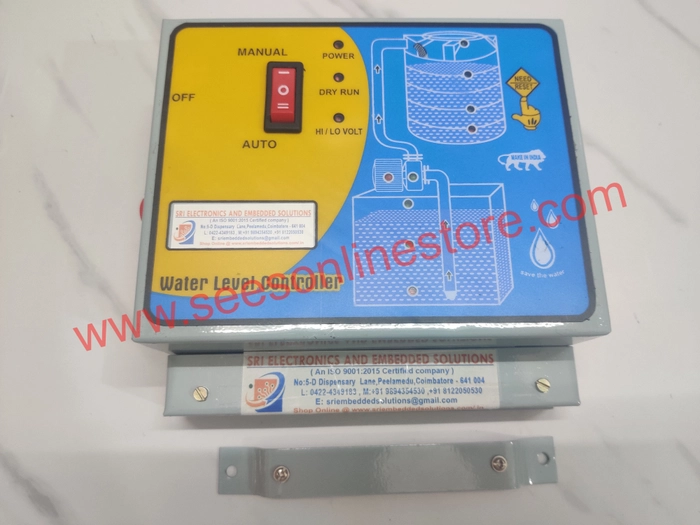

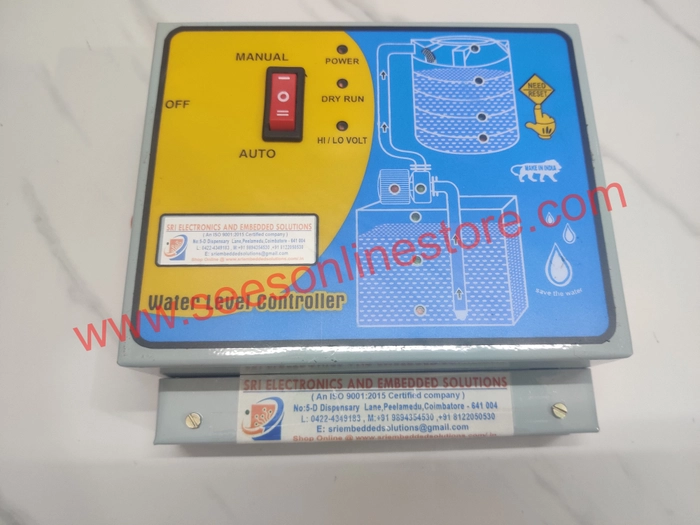

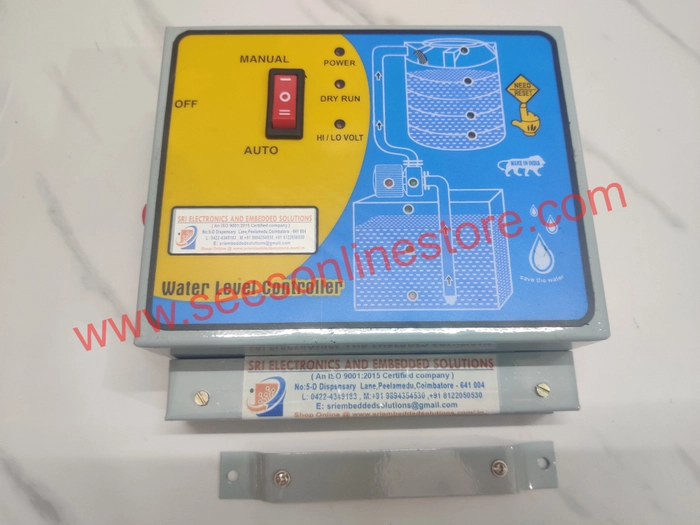

Visual Indications :

Four stage water level indicator for over head tank, water flow indication(Running Line), voltage level indication, power on indication and auto/manual indication.

Features: Switch on the panel if water tank is in required mode and switch off the panel at tank full.

Dry Run
Due to faulty foot valve or air leakage in the pipe if the motor runs dry then it gets switched off
automatically and gives fault indication.

Voltage Cut-off
Automatic Water Level Controller SEES-BORE automatically switches-off the pump if the supply voltage drops below 160V or Crosses 250V.

Surge protection
Built in surge protection is the Main features of SEES series.

Toggle Bypass Switch.
The optional toggle switch is provided to bypass system operation in case of system failure. so no need to disconnect the system when it gets failed.

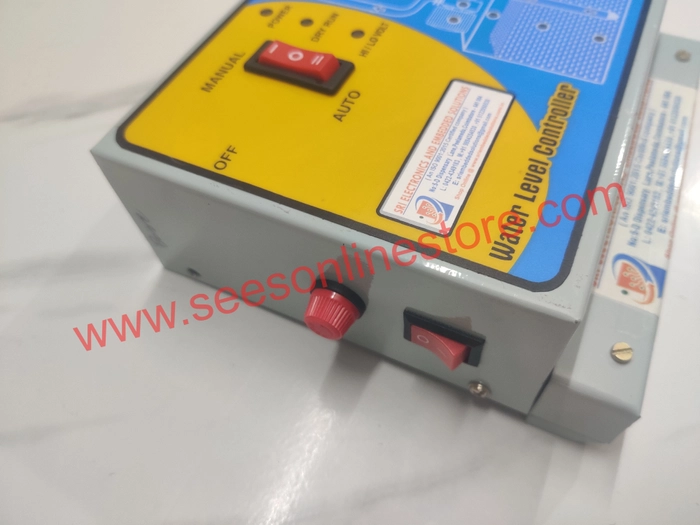

Power ON/OFF Switch.
Small rocker switch to select Power On/Off operation.

Application:
The product is suitable for almost all site conditions water tank for maintaining level
automatically, can be used to control water inflow or outflow, by means of direct pump control or acting as a control switch of a magnetic or combination starter.

Sutable for

Bore well submersible pumps.
Jet Pumps,
In SEES series variants are available for any type of pump, bore well and any combination of tanks.

AUTOMATIC WATER LEVEL CONTROLLER(BOREWELL)

•When overhead tank goes 20% pump starts automatically and tank full automatic pump will turn off.
•User can connect with their DOL starter.

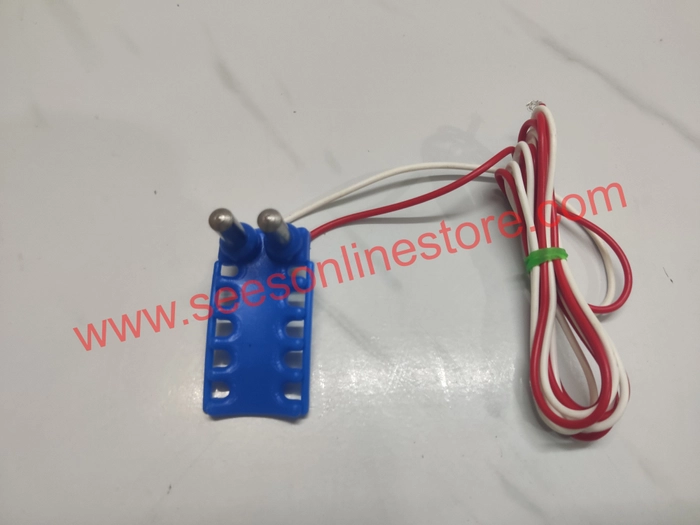

•Dry run also available, if checks a water flow for one minute if water not flowing more than a minute pump will goes off.
•Water does not waste, and we can save electricity, and our precious time.
•2 relay based ON and OFF
•Microcontroller based controlling Applications: Home, School, Hospital, Industries, College

SPECIFICATION POWER INPUT :
•230v input
•12v-1A Transformer
•When the power on red led will glow RELAY :
•12v T relay: 250v 30A, 24v 30A

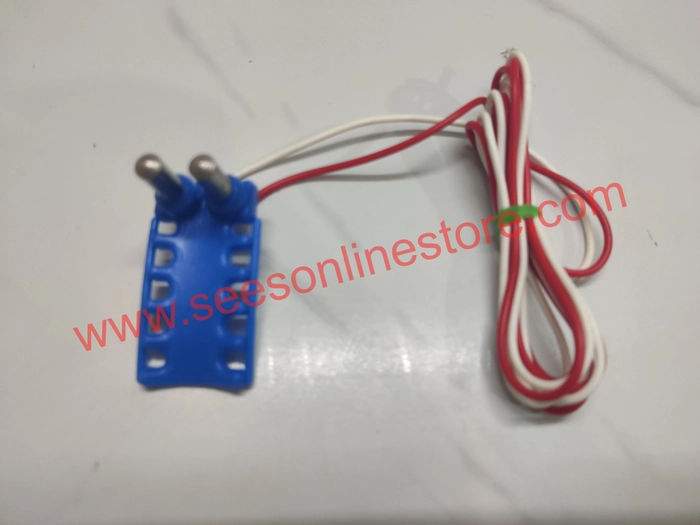

•Relay used :2 Channel SENSOR PINS:

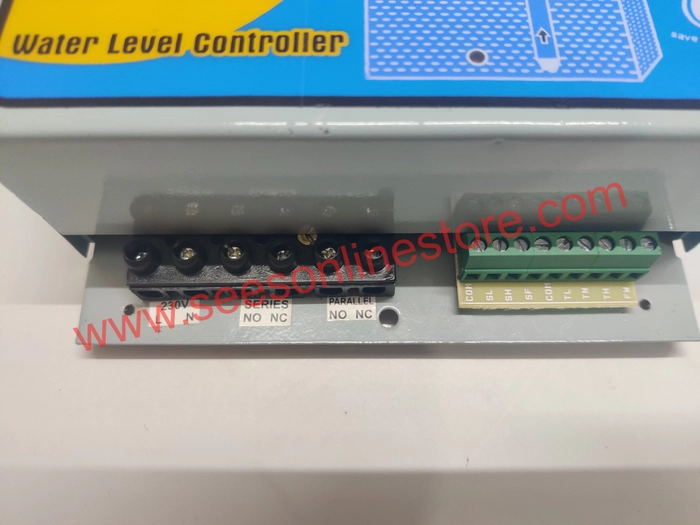

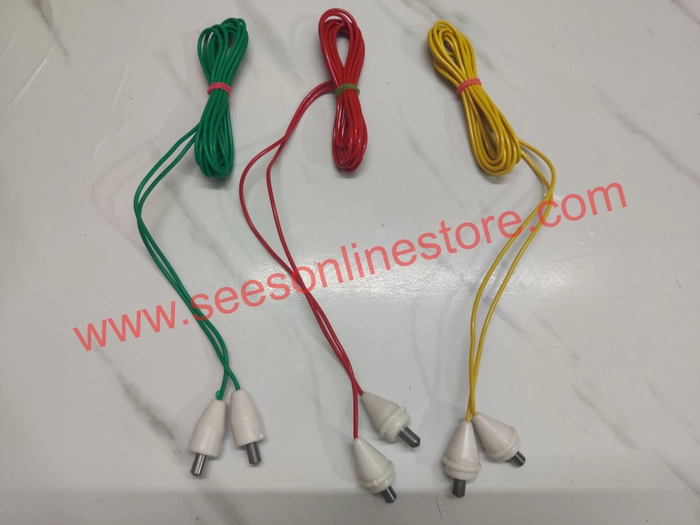

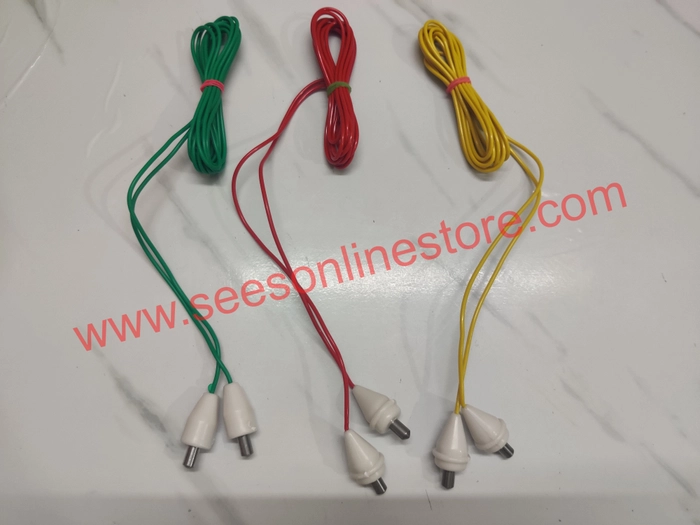

•Common (com), Tank Low (TL), Tank High (TH), Dry run (DR). SENSOR TYPE:
•SS

• Brand SEES
• Model Name/Number SEES- BORE
• Operation Type Fully Automatic Tank Type Overhead Tank Phase 1-Phase
• Mounting Type  : Wall
• Type Manual, Automatic, Digital
• Range 3-5m, 5-8m, 11-15m, 8-11m
• Feature Low Temperature Resistant, Monitoring, Conductor, Corrosion Resistant
• Input Voltage 230 V
• Frequency 50 Hz
• Warranty- 1 year
